Patriot LED Module - Universal Driver White Recessed Kit

Description

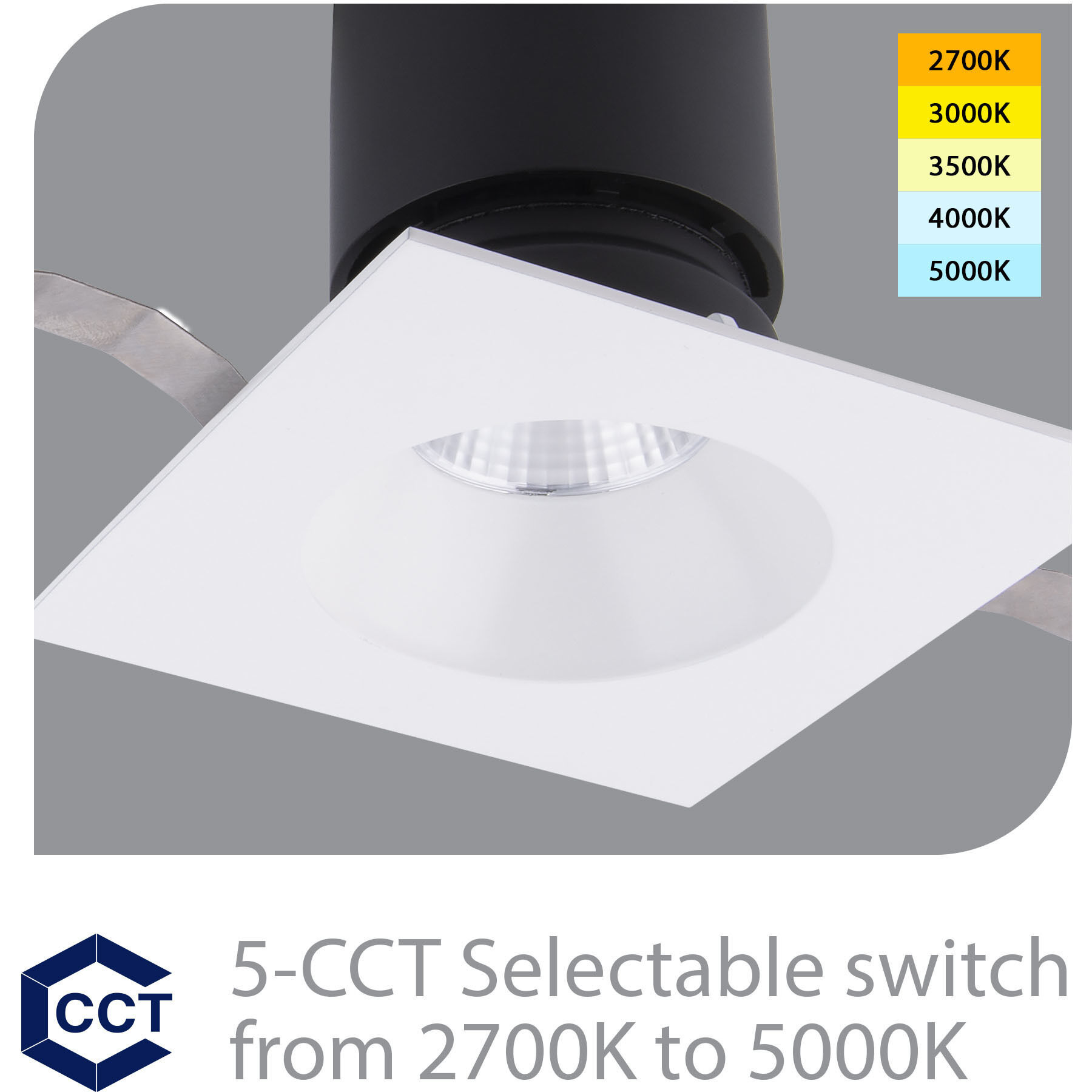

Minimum profile downlight with driver and electrical connection box attached for easy remodel or new construction installation. on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the electrical box of the fixture.

Category

Recessed

Collection

Patriot

Color

Whites

Product Specifications

Product Information

Brand: WAC Lighting
Brand Category: Recessed Kit
Brand Product Description: Patriot 3in LED 5-CCT Square Recessed Kit
Shipping Method: Ground
SKU: R3HSDR-F9CS-WT
UPC: 790576883571

Electrical and Operational Information

Color Rendering Index: 90
Color Temperature: 5000K
Dimmable: Yes
Lamping Category: LED
Lamping Included: Bulbs Included
Lamping Type: LED Module - Universal Driver
Lumens: 1100
Primary Number of Bulbs: 1
Total Number of Bulbs: 1
Total Watts: 12.00
Voltage: 120
Wattage Max: 12.00

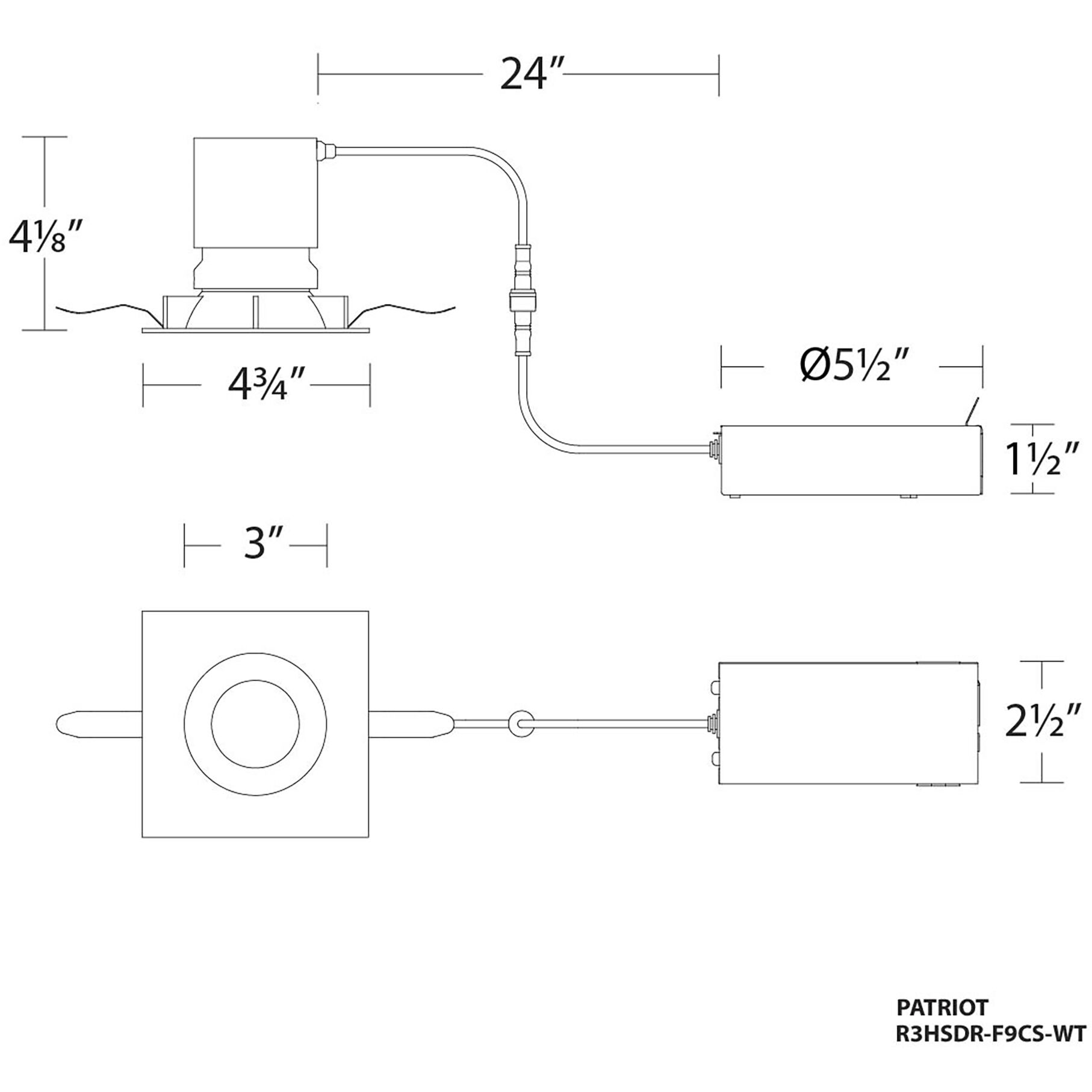

Dimensions and Measurements

Diameter: 4.75
Height: 4.13
Length: 4.75
Maximum Adjustable Height: 24.5
Width: 4.75

Warranty and Specifications

ADA: Yes
Country of Origin: China
Energy Star: Yes
Title 24: Yes
UL Ratings: ETL/cETL/CSA CAN Wet
Warranty: 5 Yrs Functional, 2 Yrs Finish

Additional Details

Features:
  • Construction: Die-cast aluminum with frosted TIR lens. Available in Round or Square trim with adjustable or straght downlight options. 45 degree flood beam spread lens can be removed to convert into a 25 degree narrow beam spread.
  • Optional frame-in kit sold separately (R3H-FRAME) for new construction applications when pre-framing is required. Patriot can be installed in remodel and new contruction applications.

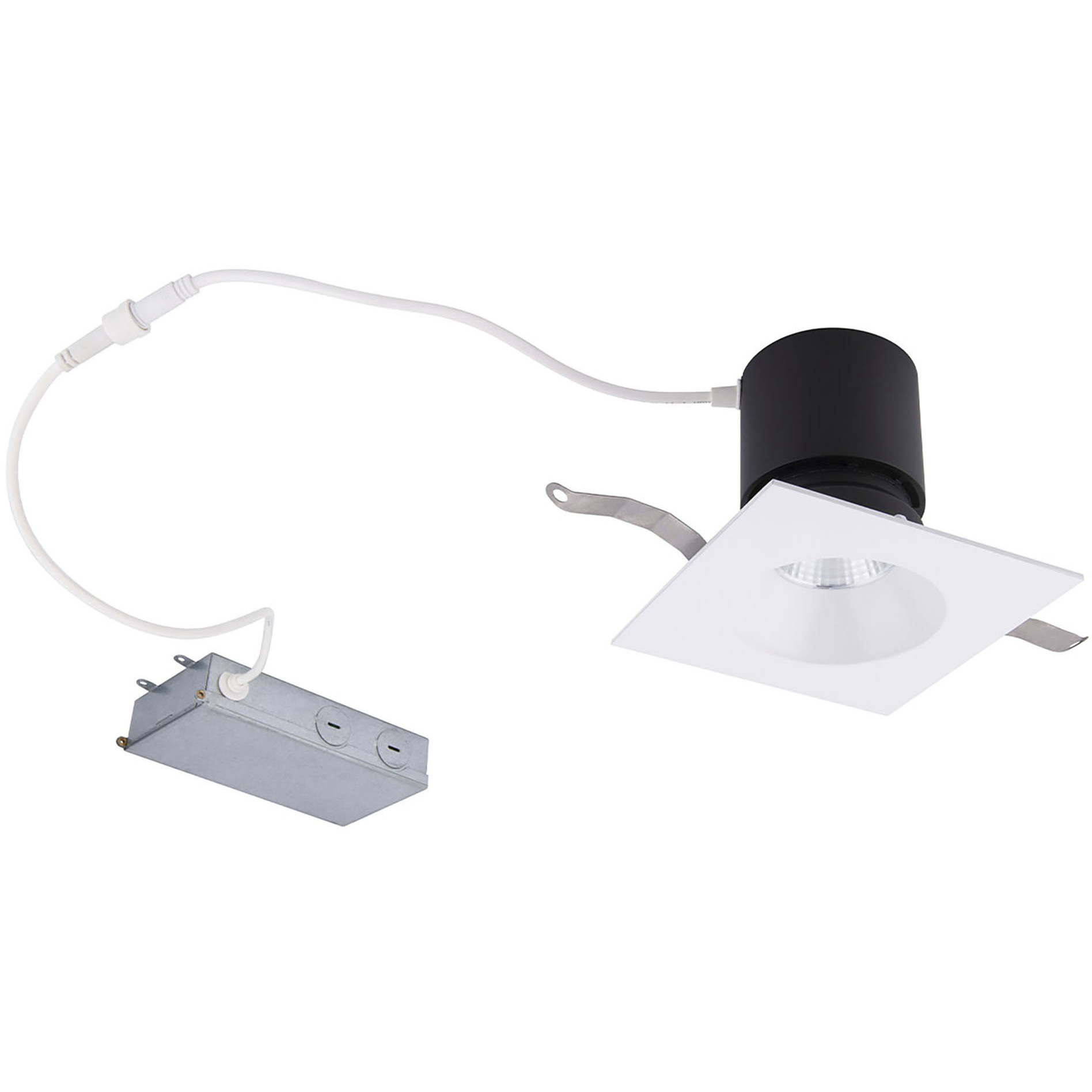

  • Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V. Electrical wiring box includes 24in of wire with twist-lock connector to detach from light engine for ease of service.
  • Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
  • High Powered LED's up to 1080 Lumens for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
  • Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, and Title 24 JA8-2016.
  • Cutout: 4.13, Trim Size: 5, Aperture: 3, IC Rating: Yes
  • Complete System: No
  • Reversible: No
  • Interior/Exterior: Interior/Exterior
    Hardwired or Portable: Hardwired
    Minimum Height: 14.5
    Dimmable: ELV, TRIAC
    Beam Spread: Adjustable 25, 45
    Average Hours: 50000
Material: Aluminum
