Patriot LED Module - Universal Driver White Adjustable Recessed Kit
- No Restocking Fee
- Bulbs Included
Patriot LED Module - Universal Driver White Adjustable Recessed Kit
- Save 20% Off, now through 12/9/24 11:59pm EST. *Some exclusions may apply. Details
- No Restocking Fee
- Bulbs Included
In stock items ship in 1-3 business days.
Discontinued
This item is no longer available, but our Lighting Experts will be happy to help you find something similar that will suit your style, space and budget.
Are you a Trade Professional?
Log in to your LNY Pro account, or sign up here to receive exclusive trade pricing and other Pro benefits today!
Our Experts Help You Every Step of the Way
Our Lighting Experts can help you find the brand that best suits your style & budget.Patriot LED Module - Universal Driver White Adjustable Recessed Kit
Description

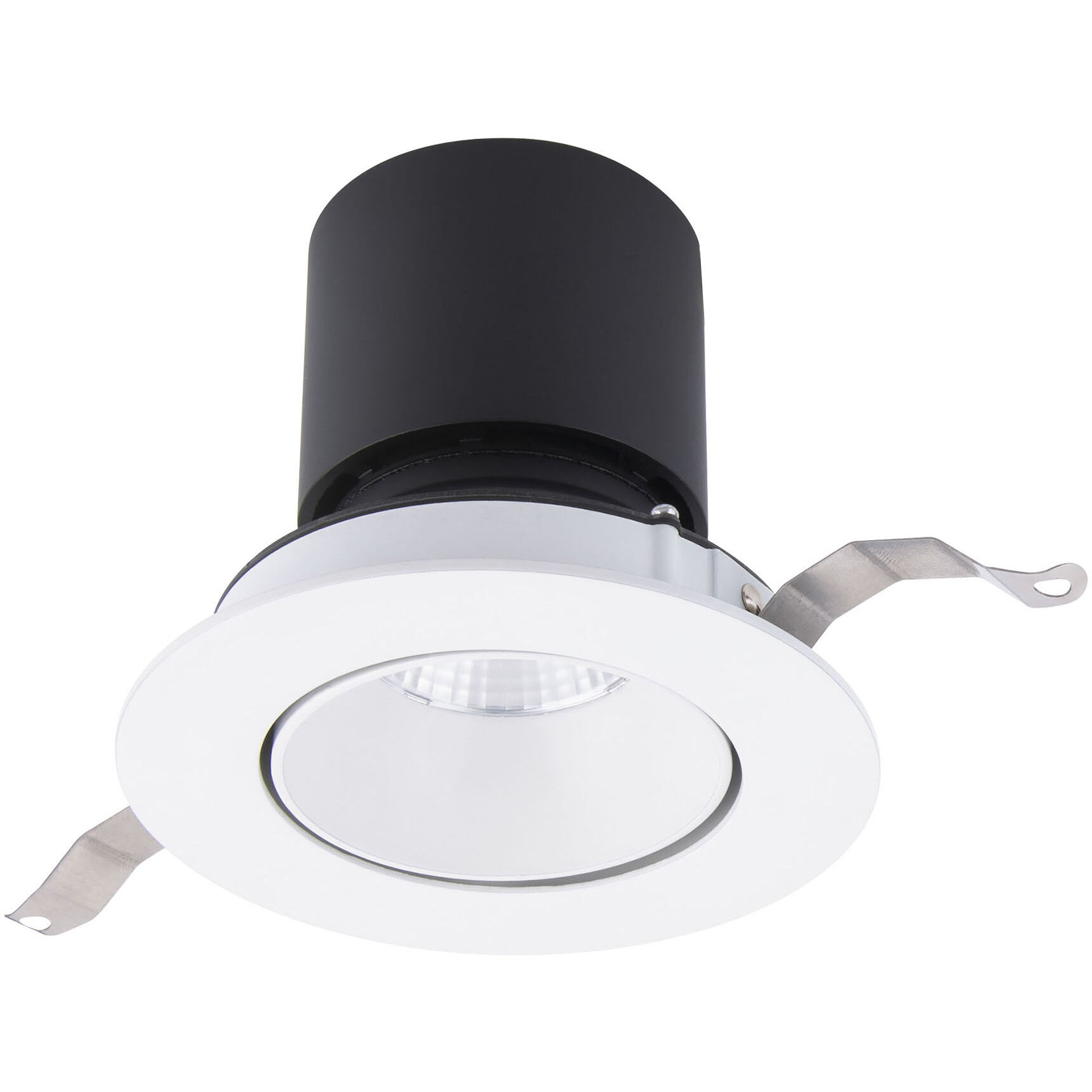

Minimum profile downlight with driver and electrical connection box attached for easy remodel or new construction installation. on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the electrical box of the fixture.
Product Specifications
Product Information
Electrical and Operational Information
Dimensions and Measurements
Warranty and Specifications
Additional Details
- Construction: Die-cast aluminum with frosted TIR lens. Available in Round or Square trim with adjustable or straght downlight options. 45 degree flood beam spread lens can be removed to convert into a 25 degree narrow beam spread.
- Optional frame-in kit sold separately (R3H-FRAME) for new construction applications when pre-framing is required. Patriot can be installed in remodel and new contruction applications.
- Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V. Electrical wiring box includes 24in of wire with twist-lock connector to detach from light engine for ease of service.
- Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
- High Powered LED's up to 1080 Lumens for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, and Title 24 JA8-2016.

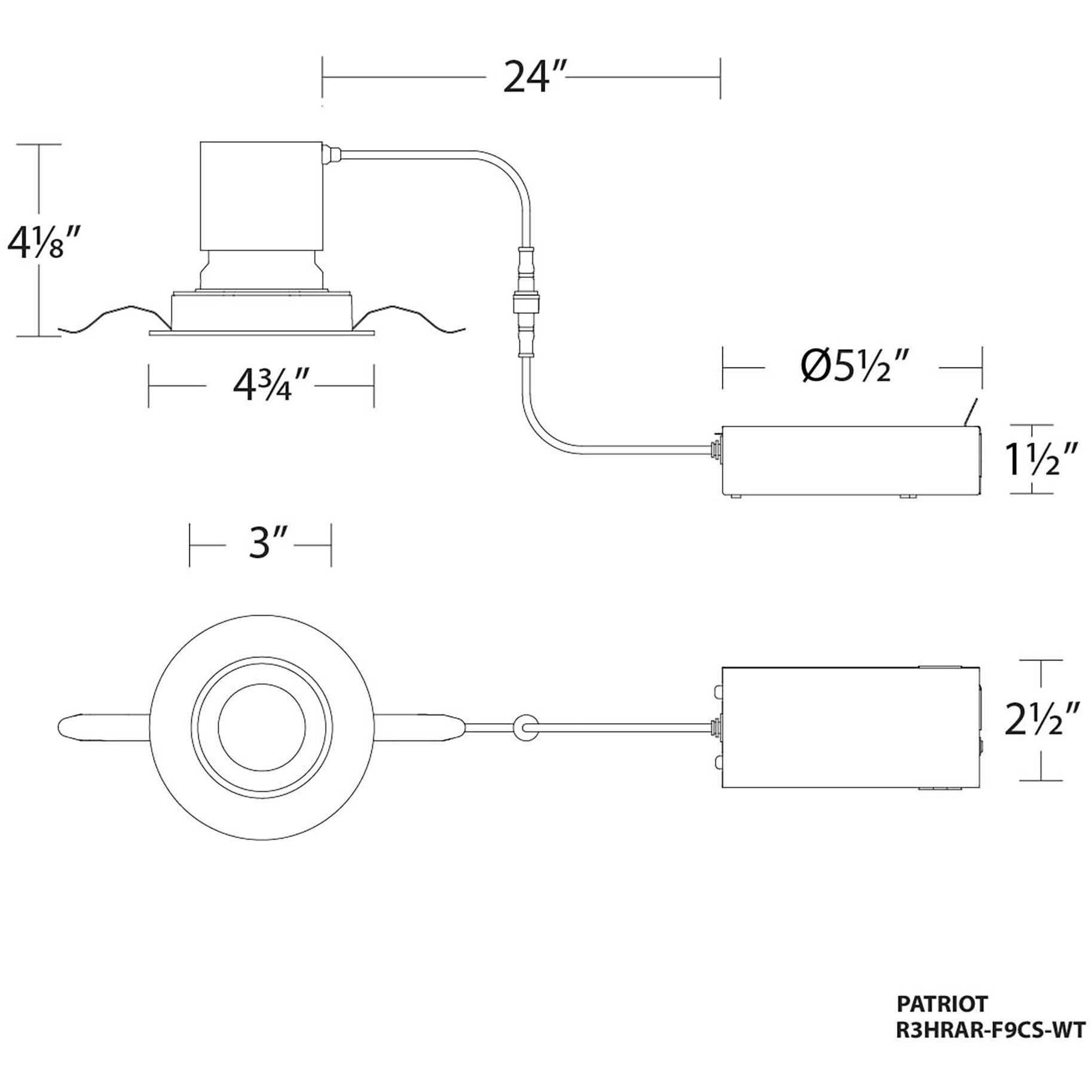

- Cutout: 4.13, Trim Size: 5, Aperture: 3, IC Rating: Yes
- Complete System: No
- Reversible: No
- Interior/Exterior: Interior/ExteriorHardwired or Portable: HardwiredMinimum Height: 14.5Dimmable: ELV, TRIACBeam Spread: Adjustable 25, 45Average Hours: 50000
Product Documentation
