Product Information

Brand:

WAC Lighting

Brand Category:

Downrod Ceiling Fan

Brand Product Description:

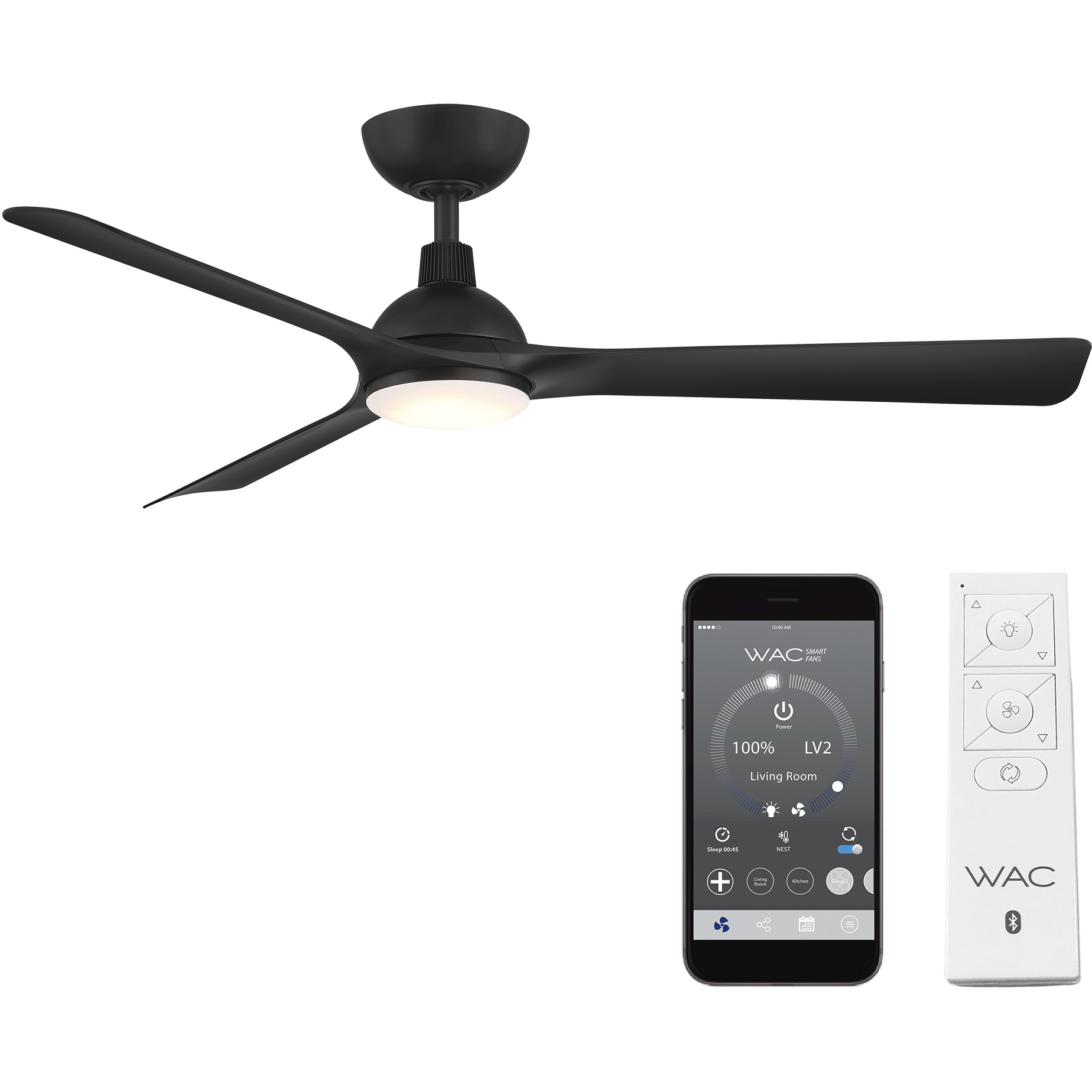

Gage Indoor or Outdoor 3-Blade 52in Smart Ceiling Fan in Matte Black with 2700-3000-4000-5000K Selectable LED Light Kit and Remote Control

Shipping Method:

Ground

SKU:

F-104L-MB

UPC:

197179070061

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

2700-3000-4000-5000K

Dimmable:

Yes

Efficiency:

204

Lamping Category:

LED

Lamping Features:

Delivered Lumens: 1329

Efficacy (Lum/Watt): 63

Beam Spread: Flood

Average Hours: 50000

Lamping Included:

Bulbs Not Included

Lamping Type:

Integrated LED

Lead Wire Length:

80

Lumens:

1991

Primary Number of Bulbs:

1

Socket:

LED Module

Total Number of Bulbs:

1

Total Watts:

49

Voltage:

120

Wattage Max:

21.00

Dimensions and Measurements

Backplate/Canopy Width:

7.1

Diameter:

6.8

Height:

8.5

Maximum Adjustable Height:

11.2

Width:

52

Fan Blade Information

Fan Blade Pitch:

16

Fan Blade Span:

52

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

Fan Features:

Speeds: 6
• Reversible Motor: Yes
• Motor Type: DC
• CFM (High): 6272
• CFM (Low): 1397
• RPM (High): 167
• RPM (Low): 41
• Motor Size: 120 x 20
• Motor Power-High (Watts): 28
• Motor Power-Avg (Watts): 20
• Yearly Energy Cost: 6
• Loudness: 15db
• Blades Included: Yes
• Blade Material: ABS
• Reversible Blades: No
• Blade Length: 22.6
• Light Kit Diffuser: Frosted PC
• Light Kit Adaptable: Yes
• Light Kit Type: LED
• Cap Included: No
• Light Direction: Down
• Pull Chain Included: No
• Remote Included: Yes
• Wall Control Included: No
• Receiver Included: Yes
• Remote Features: Bluetooth Remote Control, Android or iOS Device
• Remote Battery Specs: Includes 1 CR2032 Coin Type 3V Lithium Battery
• Wall Control Features: Bluetooth Wall Control with on/off, 6 speed, reverse, and dim to 1% (Sold Separately)

Unit Air Flow:

3987

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

Title 20:

Yes

UL Ratings:

cUL/UL Damp

Warranty:

5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts

Additional Details

Chain Cord Features:

Rod (1) 0.75"D X 4.5"H

Features:

• Features an energy efficient replaceable LED light kit with up to 1600 lumens and 90CRI in a selectable CCT 2700-3000-4000-5000K color temperature. LED light kit can be dimmed smooth and continuously.
• Light LED Replace: F4IN-120V-R1-CS-H
• Battery operated Bluetooth remote control with wall cradle is included (Part RC20-WT). An optional Bluetooth hardwired wall control is sold separately (Part WC20-WT). Wall and remote control use Bluetooth for improved range and can control an unlimited amount of fans within range.
• Standards: UL & cUL Damp Location Listed for indoor or outdoor applications.
• Additional Features:
  Receiver Replace: F-R3-104-052CS-H
  • Remote Control: RC20-WT
  • Wall Controls: WC20-WT
  • Downrods: DR12-MB, DR18-MB, DR24-MB, DR36-MB, DR48-MB, DR60-MB, DR72-MB
  • Sloped Ceiling Kits: SC-MB
  • Product Sub-Type: Indoor or Outdoor Smart Home Ceiling Fan
  • Interior/Exterior: Interior/Exterior
  • Sloped Ceiling Adaptable: Yes
  • Maximum Slope: 30 deg (7/12 pitch)
  • Low Ceiling Adaptable: Yes
  • Optional Control Type: iOS/Android App, Wifi, Voice, Remote Control, Wall Panel, Wall Control
• Fan Blades Replace: RPL-F-104-52-BD-MB
• The WAC Smart Fan iOS or Android app can sync with your ceiling fan to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs.
• WAC Smart Fans can be controlled from the WAC Smart Fan app, enabling smart features and full control of your fan from an iOS or Android device. Download the app to pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
• WAC Smart Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
• Shade Replace: RPL-F104-GLA

Material:

Aluminum
