Product Information

Brand:

WAC Lighting

Brand Category:

Downrod Ceiling Fan

Brand Product Description:

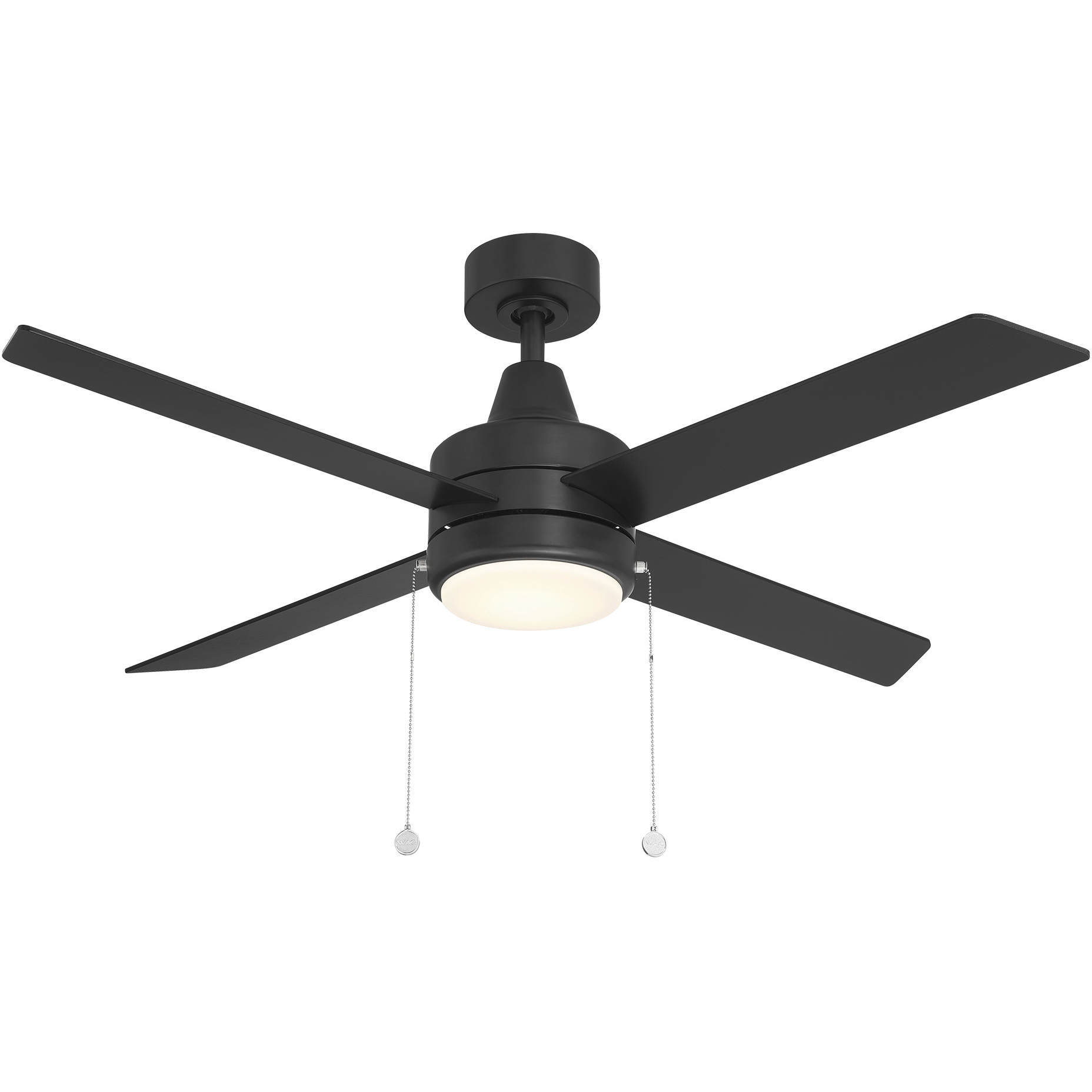

Quade Indoor or Outdoor 4-Blade 52in Pull Chain Ceiling Fan in Matte Black with 2700-3000-4000-5000K Selectable LED Light Kit

Shipping Method:

Ground

SKU:

F-106L-MB

UPC:

197179096900

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

2700-3000-4000-5000K

Dimmable:

Yes

Efficiency:

110

Lamping Category:

LED

Lamping Features:

Delivered Lumens: 1122

Efficacy (Lum/Watt): 53

Beam Spread: Flood

Average Hours: 50000

Lamping Included:

Bulbs Not Included

Lamping Type:

Integrated LED

Lead Wire Length:

80

Lumens:

1991

Primary Number of Bulbs:

1

Socket:

LED Module

Total Number of Bulbs:

1

Total Watts:

66

Voltage:

120

Wattage Max:

21.00

Dimensions and Measurements

Backplate/Canopy Width:

5.9

Diameter:

8.3

Height:

11.63

Maximum Adjustable Height:

15.7

Width:

52

Fan Blade Information

Fan Blade Pitch:

13

Fan Blade Span:

52

Number of Fan Blades:

4

Fan Operational Information

Fan Features:

Fan Features:

Speeds: 3
• Reversible Motor: Yes
• Motor Type: AC
• CFM (High): 4564
• RPM (High): 194
• RPM (Low): 84
• Motor Size: 153 x 18
• Airflow Efficiency (High): 107
• Motor Power-High (Watts): 46
• Motor Power-Avg (Watts): 31
• Yearly Energy Cost: 9
• Loudness: 17db
• Blades Included: Yes
• Blade Material: Plywood
• Reversible Blades: No
• Blade Length: 21.9
• Light Kit Diffuser: Frosted Glass
• Light Kit Adaptable: Yes
• Light Kit Type: LED
• Cap Included: No
• Light Direction: Down
• Pull Chain Included: Yes
• Remote Included: No
• Wall Control Included: No
• Receiver Included: No
• Remote Features: No Remote
• Wall Control Features: On/Off Wall Switch, Dimmer, Lutron Controls

Unit Air Flow:

3438

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

UL Ratings:

cUL/UL Damp

Warranty:

5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts

Additional Details

Chain Cord Features:

Rod (1) 0.75"D X 4.5"H

Features:

• Standards: UL & cUL Damp Location Listed for indoor or outdoor applications
• Features an energy efficient replaceable LED light kit with up to 2159 lumens and 90CRI in a selectable CCT 2700-3000-4000-5000K color temperature. LED light kit can be dimmed smooth and continuously.
• Additional Features:
  Sloped Ceiling Kits: SC-MB
  • Product Sub-Type: Indoor or Outdoor Ceiling Fan
  • Interior/Exterior: Interior/Exterior
  • Sloped Ceiling Adaptable: Yes
  • Maximum Slope: 30 deg (7/12 pitch)
  • Low Ceiling Adaptable: No
  • Optional Control Type: On/off Switch, Dimmer
• Fan Blades Replace: RPL-F106-52-BD-MB
• Shade Replace: RPL-F106-GLA
• Downrods: DR12-MB, DR18-MB, DR24-MB, DR36-MB, DR48-MB, DR60-MB, DR72-MB
• 3-Speed AC Motor with LED Light and fan speed controlled by pull chains. Contains an integral memory feature that will return the fan and light kit to the previously known setting when toggled through any plain on/off wall switch (Sold Separately).
• AC motors can be integrated with third-party ceiling fan controls with ease.
• Light LED Replace: 6F4IN-120V-R1-CS-H
• Can be installed on slope ceilings up to a 32 degree slope (Sku SC-FINISH Slope Ceiling Kit available for slopes 32-45 Degrees). Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.

Material:

Steel
